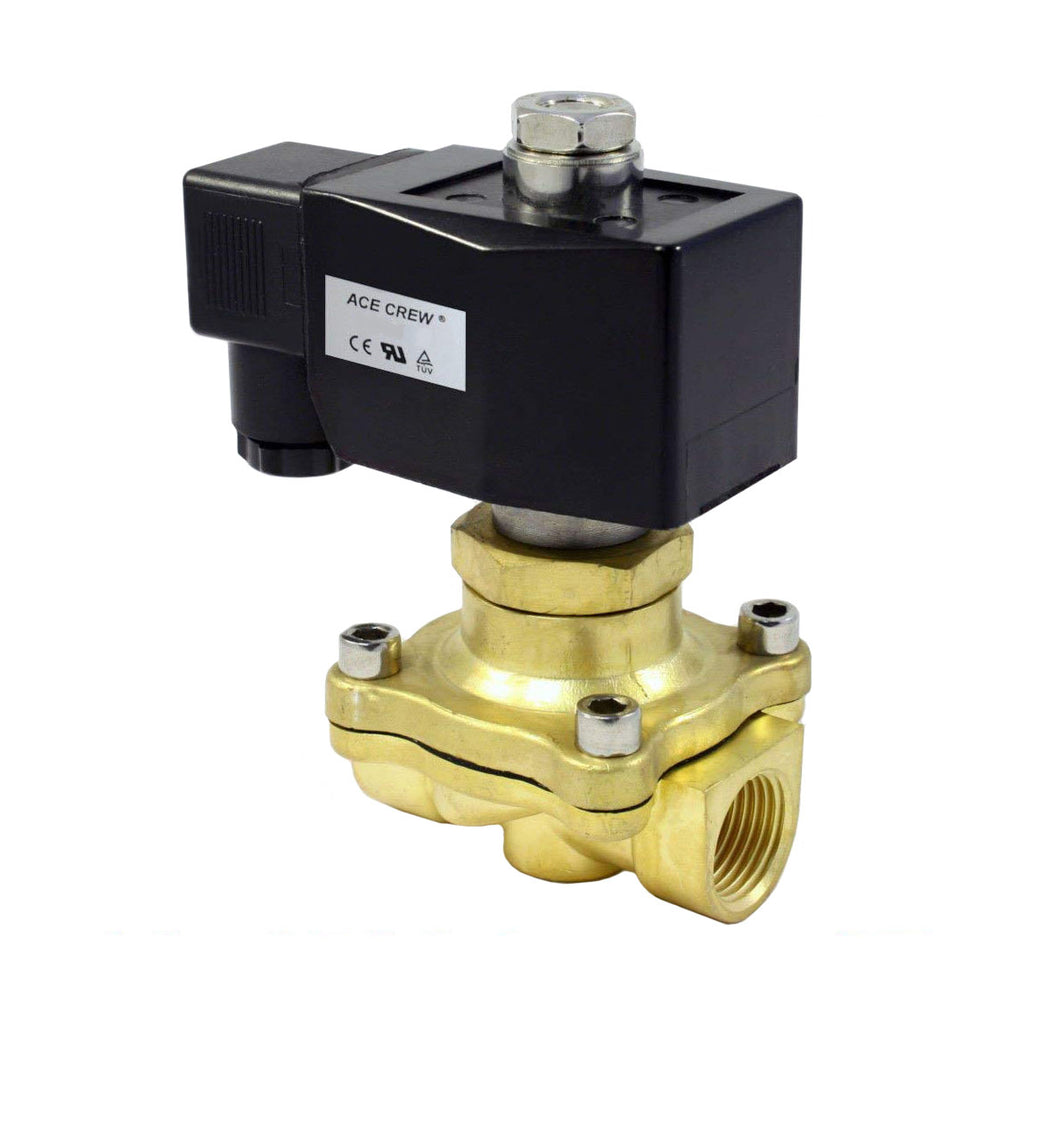

NORMALLY OPEN 3/4 INCH NPT , 24VDC BRASS SOLENOID VALVE - NBR SEAL - SUITABLE FOR WATER , GAS & AIR -DIRECT ACTING VALVE-
ACECREW is a trusted supplier of Solenoid Valves for Industrial needs and small business operations. All our Valves meet industrial standards and are made with high-quality components for durable use.
Components of our Solenoid Valves include :
- Forged solid brass that is corrosion resistant with solid construction to weather changes of temperatures
- 2 choices of Seal include NBR Buna-N, Perbunan nitrile rubber AND FKM/VITON fluoro rubber material. Solenoid Valves with either NBR seal or FKM/VITON seal are suitable for low viscosity fluids and general purpose applications, with both NBR seal Valve and FKM/VITON seal Valve operating temperature range of 15-125 °F (-10~50 °C)
- VITON Seal valves are more suitable for high solvent content use such as gasoline and higher resistance to heat of media temperature range of 15-250 °F (-10~120 °C) .
- ACE CREW brass Solenoid Valves Operating Pressure Differential : 0-145 psi (0-1 MPa, gravity-feed capable)
- Our Valves follows National Standards for pipe thread in the U.S.A. We use NPT.
- Coil terminals are not polarity sensitive
- PLEASE NOTE : This is NOT a continuous duty valve and should NOT be in continuous use for more than 8 hours in a single cycle.
HIGHLIGHT
| Body Material | Forged high-quality solid brass |
| Operation Mode | N/O (normally open) |
| Pipe Size | 3/4" NPT |
| Voltage | DC 24V |
| Diaphragm Seal Material | NBR |
MECHANICAL
| Operation Type | 2-way 2-position direct lift diaphragm |
| Operation Mode | Normally open (valve closes when the coil is engaged) |
| Pipe Size | 3/4" NPT female (14 TPI) |
| Orifice Diameter | 3/4" (20mm) |
| Flow Rate | Cv=9.3 |
| Flow Direction | Unidirectional (flow the arrow on valve body) |
| Media | Water, air, natural gas, propane, butane, petroleum oil, mineral oils, diesel, low viscosity fluid, etc. (DO NOT use with gasoline.) |
| Operating Pressure Differential | 0-145 psi (0-1 MPa, gravity-feed capable) |
| Operating Temperature | 15-125 °F (-10~50 °C) |
| Media Temperature | 15-180 °F (-10~80 °C) |
| Dimensions | See product diagrams |
| Weight | 2 lb 3 oz |
ELECTRICAL
| Voltage | DC 24V |
| Current | 1 Amp |
| Wattage | 24 Watt |
| Coil | Copper wire in resin-molded casing |
| Connectors | DIN 43650-A |
MATERIAL
| Body | Brass |
| Insert | Stainless steel (plunger, spring, etc.) |
| Seal | NBR (Buna-N, Perbunan, and Nitrile rubber) |
| Diaphragm | NBR (fiber-reinforced) |
