HVAC Duct Manual Volume Backdraft Dampers with Adjustment Handle
Designed for demanding applications where durability and smooth operation are paramount, Ace Crew's Heavy-Duty Manual Vent Dampers provides exceptional performance in even the toughest environments.

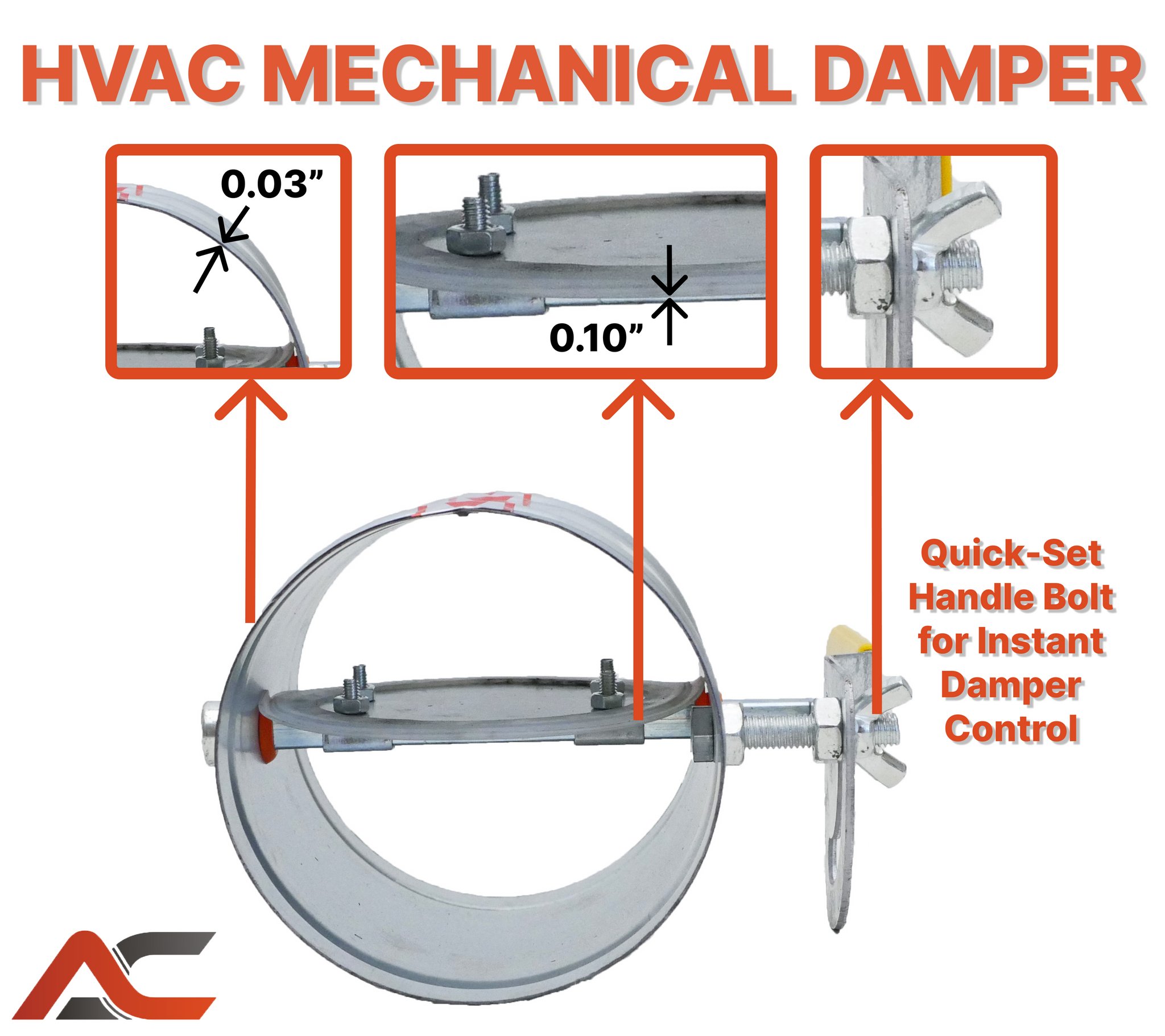

Durable Material: The body is made from 22-gauge galvanized steel material. The flap blade is made from silicone which provides a tight seal. Constructed with sturdy components to ensure reliability.
Size: Port Outer Diameter OPTIONS: 4 in (101.6 mm), 5 in (127 mm), 6 in (152.4 mm), 8 in (203.2mm) or 10 in (254 mm)

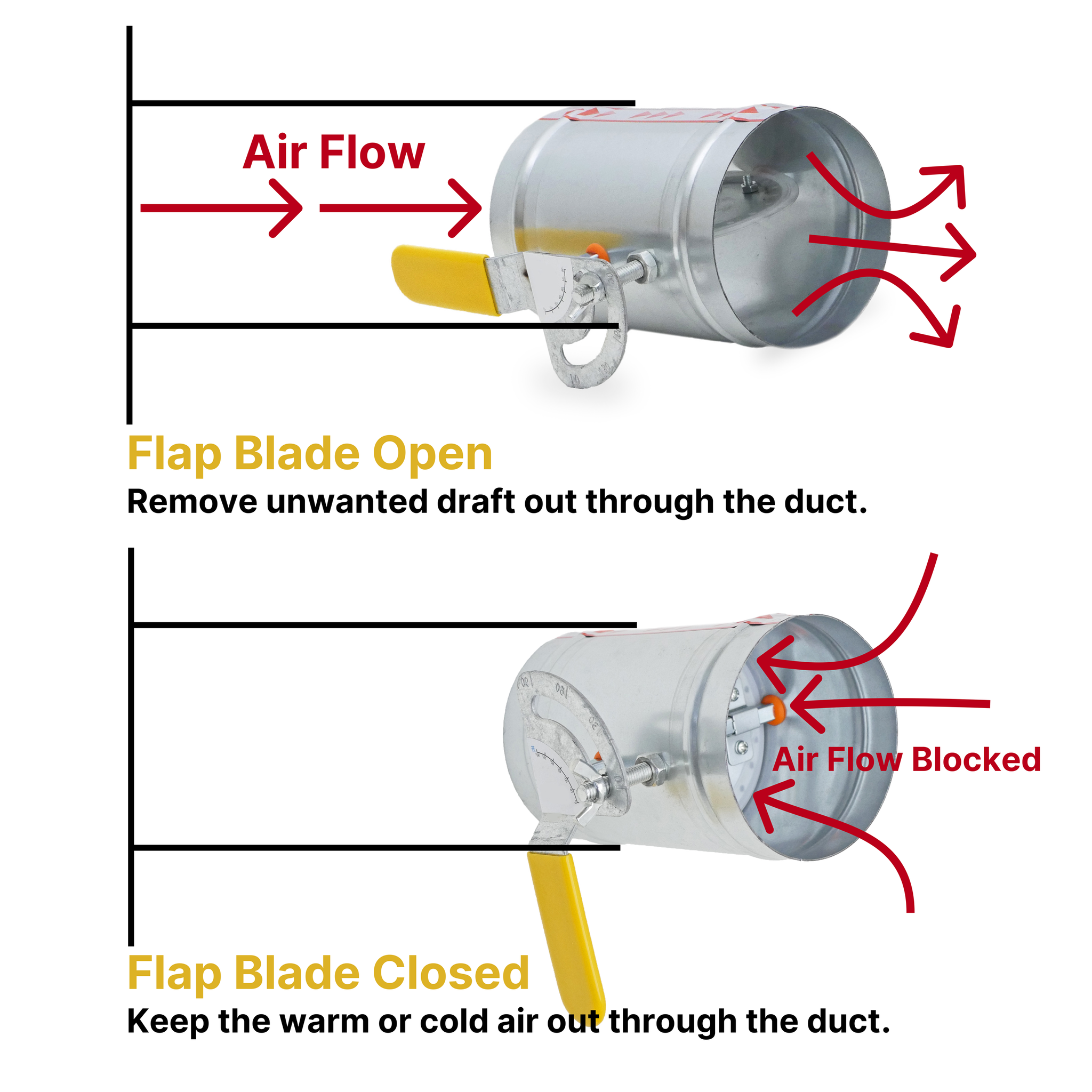

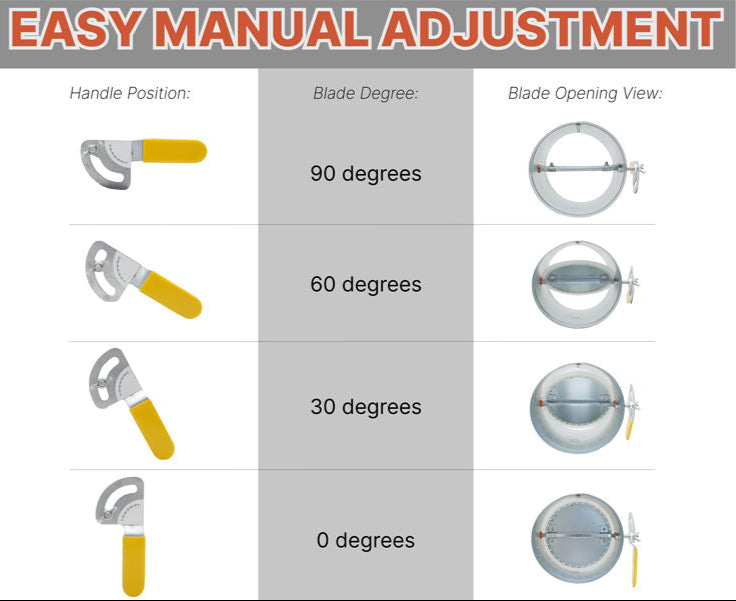

Manual Airflow Adjustment: Enjoy a comfortable environment with our damper sleeve, designed to use the manual handle on the valve to adjust the air volume from multiple angles. This is helpful to control room temperature and stop the backdraft. It is also important to know that the damper sleeve should be installed in places where you can easily control the handle.

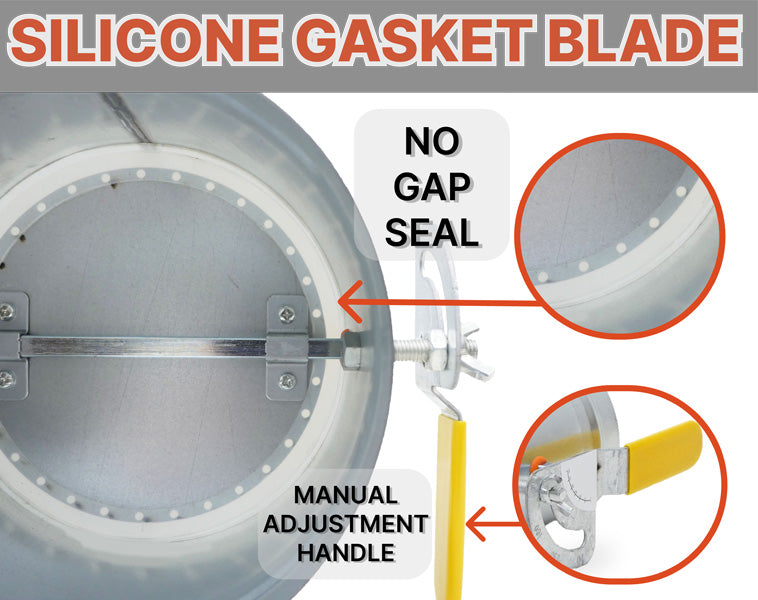

Edge Silicone Sealing: Our damper sleeve features a rubber seal ring inside, providing good air tightness and it can prevent the air duct valve from leaking when it is closed. Also, this innovative design ensures smooth and silent operation when the flap board opens or closes.

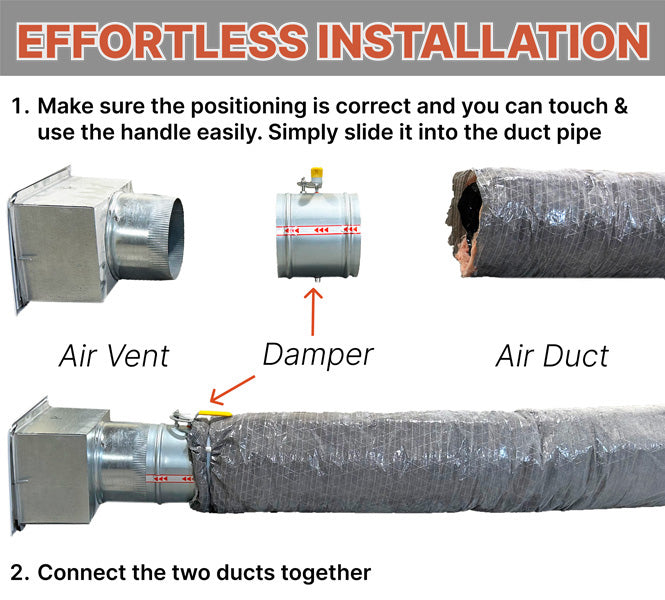

Easy to install: Simply slide it directly into your ventilation pipe, and then use the pipe clamp and tape for a secure fit. Save time and effort with our design that allows for quick and straightforward installation.
Applications: The manual volume damper is used for air volume regulation in an air ventilation system, and it is widely used in the HVAC industry. With that installed in your HVAC systems, you can easily control the airflow rate or close off an air duct if needed, to some extent, it will increase the energy efficiency of your system.
Other Features: The red airflow arrow sticker serves as a crucial visual indicator, ensuring proper installation and functionality within an HVAC system.
