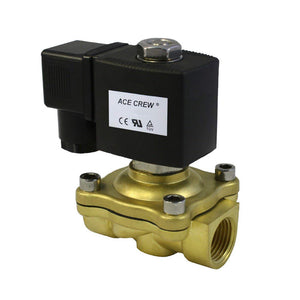

ACECREW SOLENOID VALVE 1/2 INCH 24VAC NORMALLY CLOSED
Brass Solenoid Valve NC 1/2 inch NPT 24VAC Normally Closed for Water Air Gas
Brass Solenoid Valve NC 1/2 inch NPT 24VAC Normally Closed for Water Air Gas
Brass Solenoid Valve NC 1/2 inch NPT 24VAC Normally Closed for Water Air Gas
Brass Solenoid Valve NC 1/2 inch NPT 24VAC Normally Closed for Water Air Gas
Brass Solenoid Valve NC 1/2 inch NPT 24VAC Normally Closed for Water Air Gas
Brass Solenoid Valve NC 1/2 inch NPT 24VAC Normally Closed for Water Air Gas
Brass Solenoid Valve NC 1/2 inch NPT 24VAC Normally Closed for Water Air Gas

Brass Solenoid Valve NC 1/2 inch NPT 24VAC Normally Closed for Water Air Gas

Regular price
$28.98
Sale price
$28.98

Brass Solenoid Valve Normally Closed 1/2 inch 24VAC with NBR Seal - Suitable for water, gas & air - Direct Acting Valve

ACECREW is your trusted supplier of solenoid valves for industrial needs and small business operations. Our valves meet industrial standards and are crafted with high-quality components for lasting durability.

Features:

  • Forged Solid Brass Construction: Corrosion-resistant and solidly constructed for reliability.

  • Two Seal Options: Choose between NBR Buna-N or FKM/VITON seals for your specific application needs.

  • Versatile Compatibility: Suitable for low viscosity fluids and automation control applications.

  • Specialized VITON Seal: Ideal for high solvent content use and offers higher resistance to heat.

  • National Standard Thread: Follows national standards for pipe thread in the U.S.A.

  • Non-Polarity Sensitive Coil Terminals: Simplified installation process.

  • Industrial Applications : control of fuel flow in Automotive Fuel Systems ; pumps, air compressors, and portable water filtration systems ; flow of water or other fluids in irrigation systems .

Please Note: This valve is not designed for continuous duty and should not be used continuously for more than 8 hours in a single cycle.

HIGHLIGHT

Body Material Forged high-quality solid brass
Operation Mode N/C (normally closed)
Pipe Size 1/2" NPT
Voltage AC 24V
Diaphragm Seal Material NBR



MECHANICAL

Operation Type 2-way 2-position direct lift diaphragm
Operation Mode Normally closed (valve opens when the coil is engaged)
Pipe Size 1/2" NPT female (14 TPI)
Orifice Diameter 19/32" (15 mm)
Flow Rate Cv=4.5
Flow Direction Unidirectional (flow the arrow on valve body)
Media Water, air, natural gas, propane, butane, petroleum oil, mineral oils, diesel, low viscosity fluid, etc. (DO NOT use with gasoline.)
Operating Pressure Differential 0-145 psi (0-1 MPa, gravity-feed capable)
Operating Temperature 15-125 °F (-10~50 °C)
Media Temperature 15-180 °F (-10~80 °C)
Dimensions See product diagrams
Weight 1 lb 6 oz



ELECTRICAL

Voltage 24 VAC
Current 1 Amp
Wattage 24 Watt
Coil Copper wire in resin-molded casing
Connectors DIN 43650-A



MATERIAL

Body Brass
Insert Stainless steel (plunger, spring, etc.)
Seal NBR (Buna-N, Perbunan, and Nitrile rubber)
Diaphragm NBR (fiber-reinforced)
