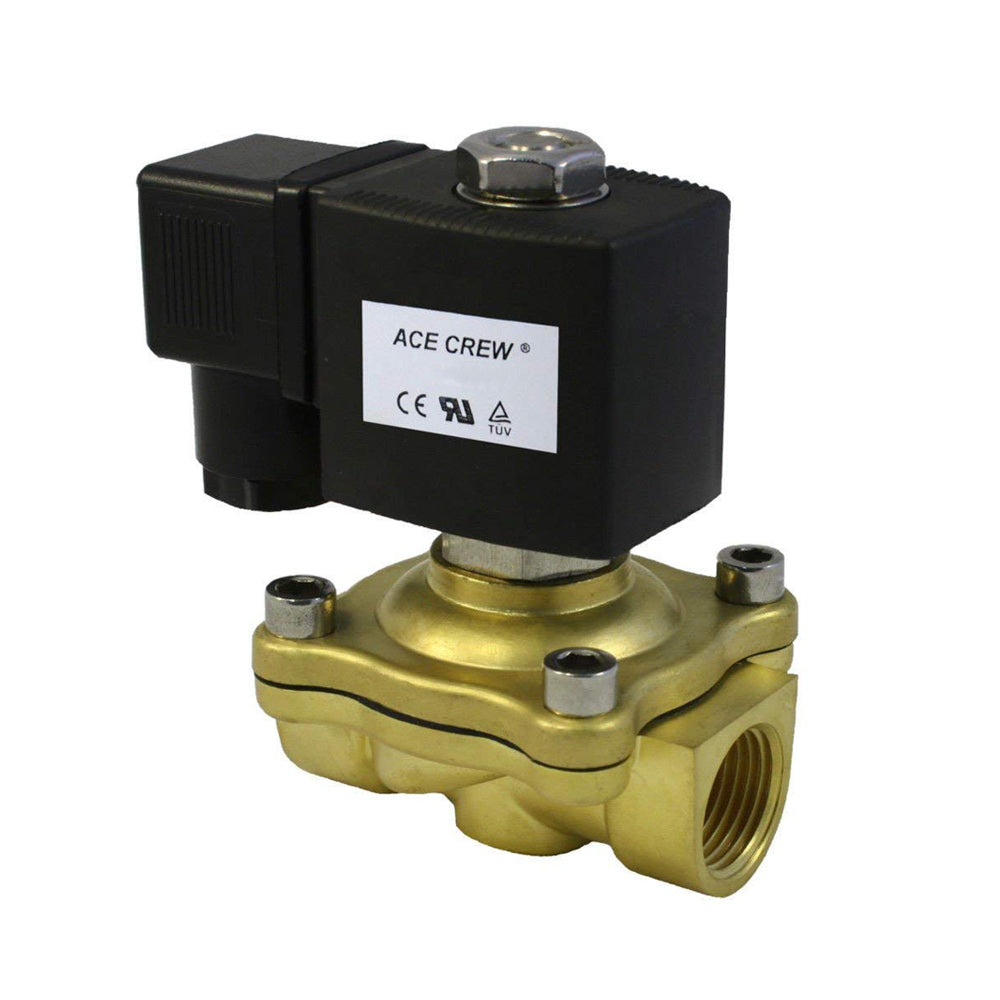

NORMALLY CLOSED 3/4 INCH NPT , 24VDC BRASS SOLENOID VALVE - NBR SEAL - SUITABLE FOR WATER, GAS & AIR - DIRECT ACTING VALVE
ACECREW is your trusted supplier of solenoid valves for industrial needs and small business operations. Our valves meet industrial standards and are crafted with high-quality components for lasting durability.
Features:
-
Forged Solid Brass Construction: Corrosion-resistant and solidly constructed for reliability.
-
Two Seal Options: Choose between NBR Buna-N or FKM/VITON seals for your specific application needs.
-
Versatile Compatibility: Suitable for low viscosity fluids and automation control applications.
-
Specialized VITON Seal: Ideal for high solvent content use and offers higher resistance to heat.
-
National Standard Thread: Follows national standards for pipe thread in the U.S.A.
-
Non-Polarity Sensitive Coil Terminals: Simplified installation process.
-
Industrial Applications : control of fuel flow in Automotive Fuel Systems ; pumps, air compressors, and portable water filtration systems ; flow of water or other fluids in irrigation systems.
-
Please Note: This valve is not designed for continuous duty and should not be used continuously for more than 8 hours in a single cycle.
HIGHLIGHT
| Body Material | Forged high-quality solid brass |
| Operation Mode | N/C (normally closed) |
| Pipe Size | 3/4" NPT |
| Voltage | DC 24V |
| Diaphragm Seal Material | NBR |
MECHANICAL
| Operation Type | 2-way 2-position direct lift diaphragm |
| Operation Mode | Normally closed (valve opens when the coil is engaged) |
| Pipe Size | 3/4" NPT female (14 TPI) |
| Orifice Diameter | 3/4" (20 mm) |
| Flow Rate | Cv=9.3 |
| Flow Direction | Unidirectional (flow the arrow on valve body) |
| Media | Water, air, natural gas, propane, butane, petroleum oil, mineral oils, diesel, low viscosity fluid, etc. (DO NOT use with gasoline.) |
| Operating Pressure Differential | 0-145 psi (0-1 MPa, gravity-feed capable) |
| Operating Temperature | 15-125 °F (-10~50 °C) |
| Media Temperature | 15-180 °F (-10~80 °C) |
| Dimensions | See product diagrams |
| Weight | 1 lb 9 oz |
ELECTRICAL
| Voltage | DC 24V |
| Current | 1 Amp |
| Wattage | 24 Watt |
| Coil | Copper wire in resin-molded casing |
| Connectors | DIN 43650-A |
MATERIAL
| Body | Brass |
| Insert | Stainless steel (plunger, spring, etc.) |
| Seal | NBR (Buna-N, Perbunan, and Nitrile rubber) |
| Diaphragm | NBR (fiber-reinforced) |
