VITON NORMALLY CLOSED SOLENOID VALVE 1/2 INCH 12VDC
Brass Solenoid Valve Viton 1/2 inch NPT 12vdc Normally Closed for water, air & gas
Brass Solenoid Valve Viton 1/2 inch NPT 12vdc Normally Closed for water, air & gas
Brass Solenoid Valve Viton 1/2 inch NPT 12vdc Normally Closed for water, air & gas
Brass Solenoid Valve Viton 1/2 inch NPT 12vdc Normally Closed for water, air & gas
Brass Solenoid Valve Viton 1/2 inch NPT 12vdc Normally Closed for water, air & gas
Brass Solenoid Valve Viton 1/2 inch NPT 12vdc Normally Closed for water, air & gas
Brass Solenoid Valve Viton 1/2 inch NPT 12vdc Normally Closed for water, air & gas
Brass Solenoid Valve Viton 1/2 inch NPT 12vdc Normally Closed for water, air & gas
Brass Solenoid Valve Viton 1/2 inch NPT 12vdc Normally Closed for water, air & gas

Brass Solenoid Valve Viton 1/2 inch NPT 12vdc Normally Closed for water, air & gas

Regular price
$29.99
Sale price
$29.99

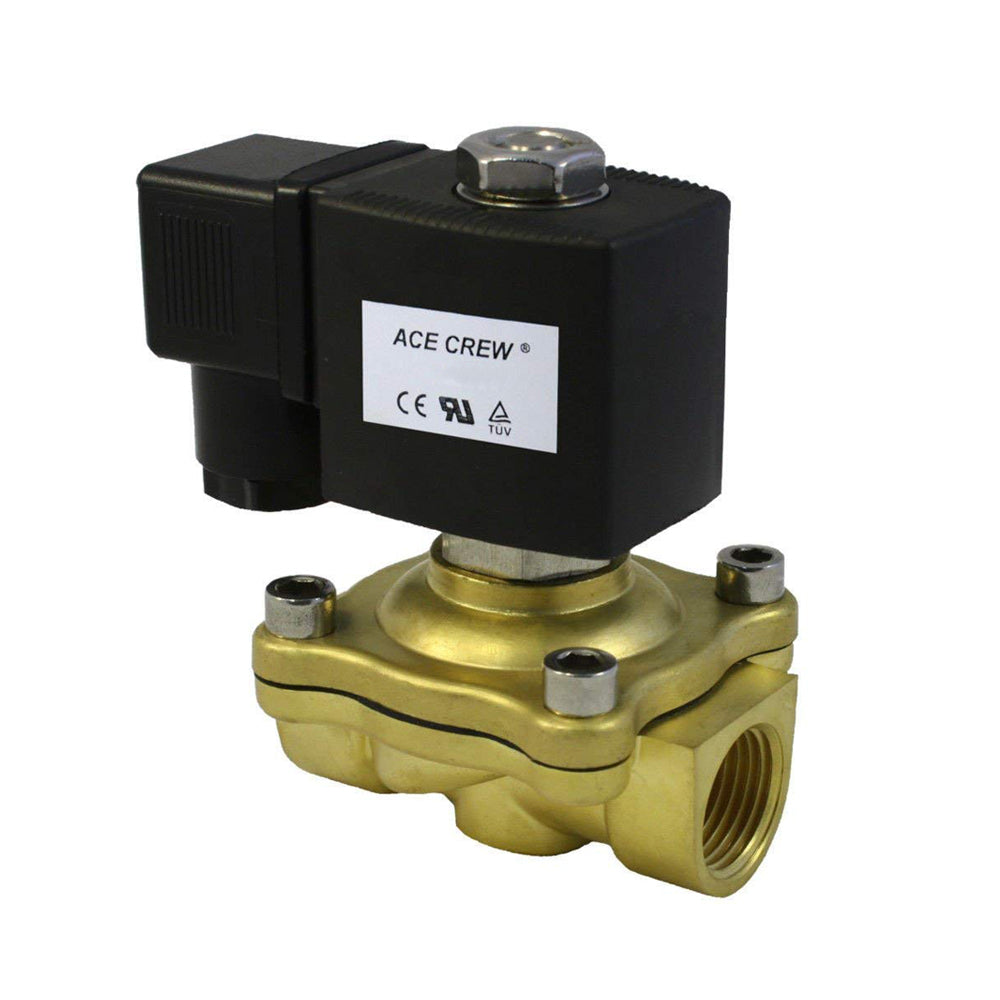

Brass Solenoid Valve Viton Normally Closed 1/2 inch 12vdc with FKM Seal suitable for water, gas & air - Direct Acting Valve

ACECREW is a trusted supplier of Solenoid Valves for Industrial needs and small business operations. All our Valves meet industrial standards and are made with high-quality components for durable use.

Components of our Solenoid Valves include :

  • Forged solid brass that is corrosion resistant with solid construction to weather changes of temperatures
  • 2 choices of Seal include NBR Buna-N, Perbunan nitrile rubber AND FKM/VITON fluoro rubber material. Solenoid Valves with either NBR seal or FKM/VITON seal are suitable for low viscosity fluids and general purpose applications, with both NBR seal Valve and FKM/VITON seal Valve operating temperature range of 15-125 °F (-10~50 °C)
  • VITON Seal valves are more suitable for high solvent content use such as gasoline and higher resistance to heat of media temperature range of 15-250 °F (-10~120 °C) .
  • ACE CREW brass Solenoid Valves Operating Pressure Differential : 0-145 psi (0-1 MPa, gravity-feed capable)
  • Our Valves follows National Standards for pipe thread in the U.S.A. We use NPT.
  • Coil terminals are not polarity sensitive
  • PLEASE NOTE : This is NOT a continuous duty valve and should NOT be in continuous use for more than 8 hours in a single cycle.

HIGHLIGHT

Body Material Forged high-quality solid brass
Operation Mode N/C (normally closed)
Pipe Size 1/2" NPT
Voltage DC 12V
Diaphragm Seal Material VITON/FKM



MECHANICAL

Operation Type  2-way 2-position direct lift diaphragm
Operation Mode Normally closed (valve opens when the coil is engaged)
Pipe Size 1/2" NPT female (14 TPI)
Orifice Diameter 19/32" (15mm)
Flow Rate Cv=4.5
Flow Direction Unidirectional (flow the arrow on valve body)
Media Water, air, natural gas, propane, butane, petroleum oil, mineral oils, diesel, gasoline, low viscosity fluid, etc.
Operating Pressure Differential 0-145 psi (0-1 MPa, gravity-feed capable)
Operating Temperature 15-125 °F (-10~50 °C)
Media Temperature 15-250 °F (-10~120 °C)
Dimensions See product diagrams
1Weight 1 lb 6 oz



ELECTRICAL

Voltage 12 VDC
Current 2 Amp
Wattage 24 Watt
Coil Copper wire in resin-molded casing
Connectors DIN 43650-A



MATERIAL

Body Brass
Insert Stainless steel (plunger, spring, etc.)
Seal VITON (FKM/FPM, fluorocarbon)
Diaphragm VITON (fiber-reinforced)
